8. Data Export

Trio Controllers include a simple, user-friendly history export function. Just plug a USB flash drive into the controller, click a few icons, and an Excel file is automatically saved to the drive.

The challenge comes when you need to export data from multiple controllers across an entire farm. Imagine a farm with 20 houses, each equipped with a Trio controller. While exporting data from each controller is possible, the process quickly becomes time-consuming.

TrioAir now eliminates that challenge. With its remote data export feature, you can export data from all of your farms' controllers without needing to visit each house individually. This functionality is available for all Trio controller applications, including poultry, swine, and greenhouse operations.

Who Can Use This Function

• Desktop users only (this feature isn't available on cellphones)
• Paid accounts only (click here to see how to upgrade your account)
• Owners and managers can use this function.

What Data is Exported

• Product-specific data
  • Poultry: temperature, humidity, ventilation, feed, water, mortality
  • Swine: temperature, pressure, feed, water, weight
  • Greenhouse: temperature, humidity, CO₂, light intensity
• General data
  • Alarms
  • Water and feed consumption
  • Animal management (count, mortality)
  • Animal weights

Details

• Data can be exported three (3) times a day.
• You can customize the date range of the data export:
  • The maximum date span is two (2) months.
  • Data is stored up to one (1) year.

How to Export the Data

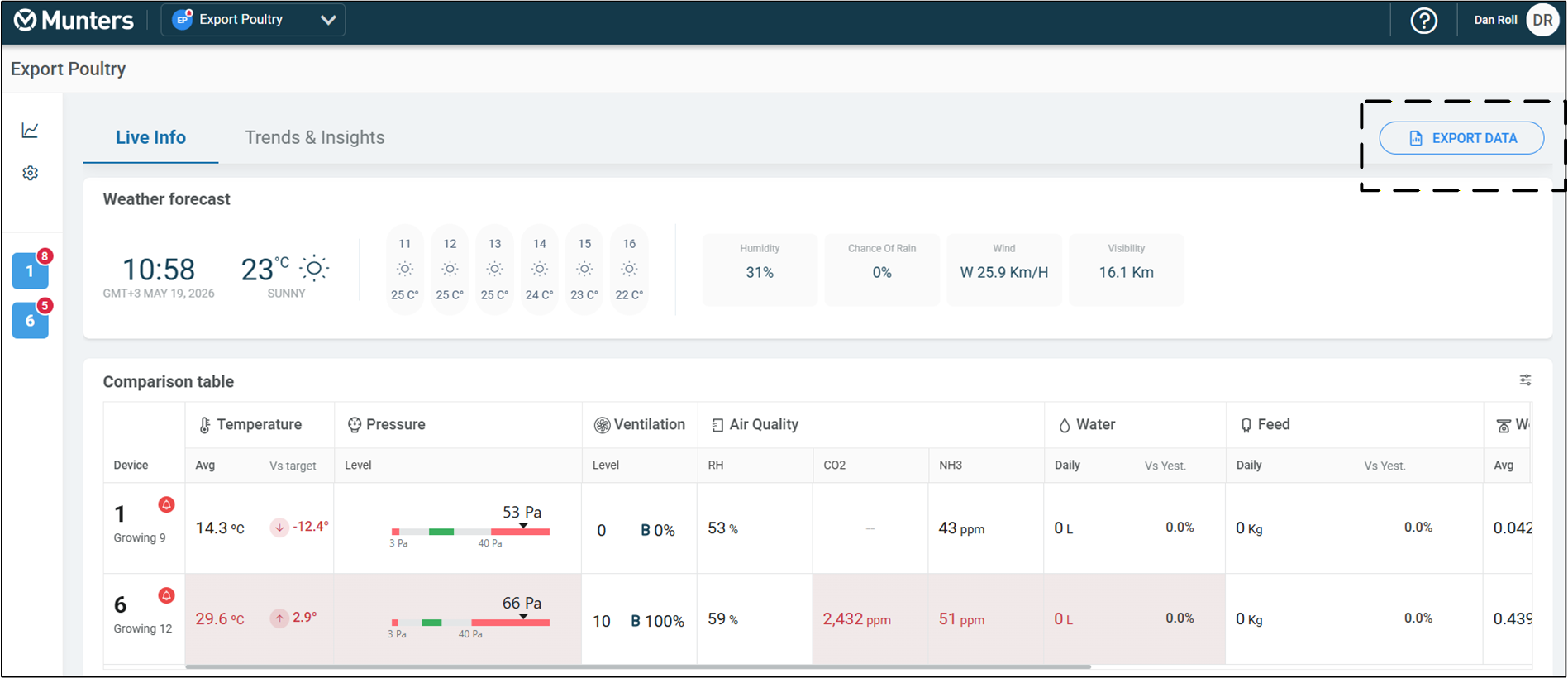

1. On the Dashboard, click Export Data.

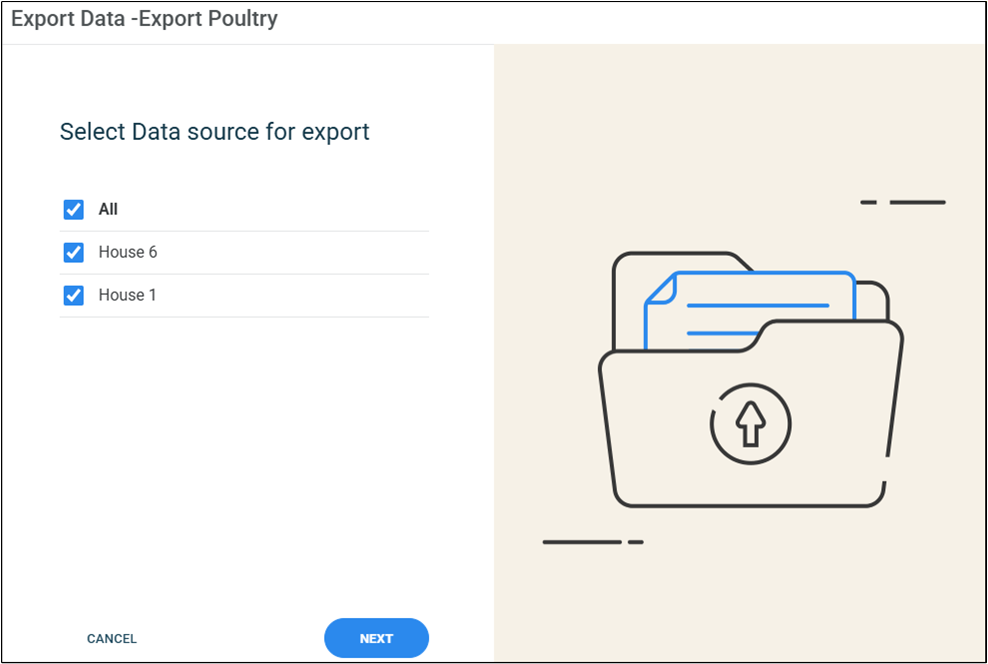

2. Select which houses you want to get data from (all or some) and click Next.

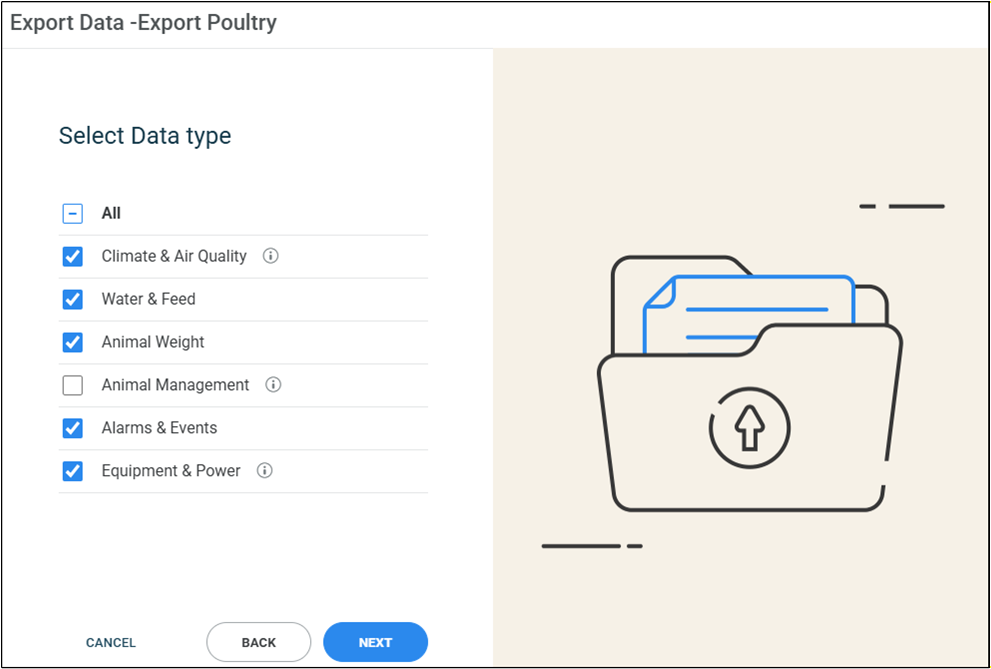

3. Select the type of data that you want exported and click Next (the following screenshot is taken from a pig farm; poultry farms and greenhouses have different options).

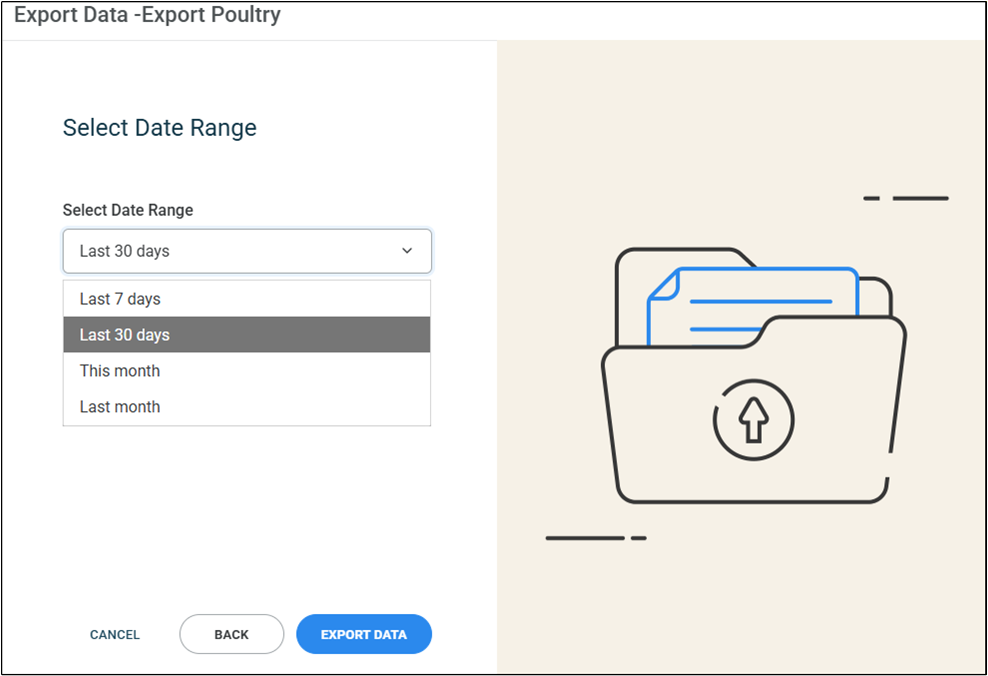

4. From the drop down list, select the date range and then click Export.

The data is exported to to your PC as an XLS file.
