Voice Card Trouble Shooting

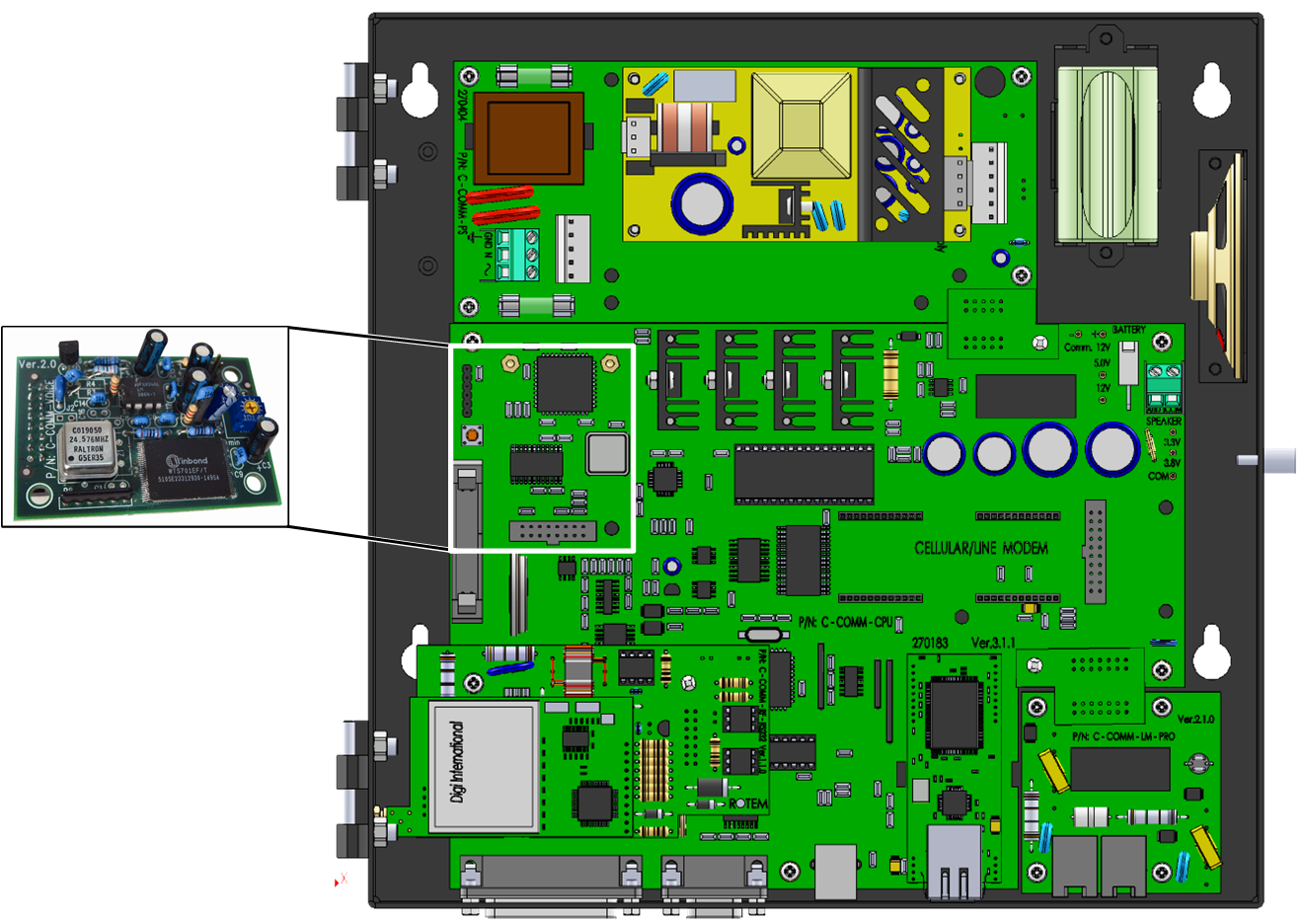

Voice Card Location

1. Refer to Testing Voice and perform voice test.

2. Change the parameters as required (refer to Setting the Voice).

Note: Do not forget to confirm by moving the cursor to the ‘TEST’ parameter and pressing 'ENTER'.

3. Verify speaker cable is connected.

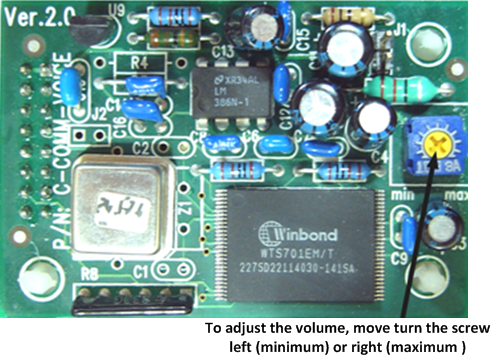

4. Turn volume trimmer on voice card until required volume is reached.

5. If none of the above helps, contact your dealer.
