1. Getting Started with TrioAir

Introduction to TrioAir

TrioAir is the Munters (desktop and cellphone) app that gives users remote access to their controllers. The following page outlines the basic functions and provides links to pages detailing each function.

There are four basic steps in setting up TrioAir.

• Access the App
• Sign Up
• Creating and Managing a Farm
• Adding Controllers to Farms

Once you have set up your account, farm, and devices, TrioAir offers easy access to your farm and data along with critical functions needed to successfully run a farm.

• Dashboard
• Alarms Management

Step 1: Access the App

The first step in using TrioAir is to access the application, either on your PC or your cellphone.

• Desktop App
• Cellphone App

Desktop App

Users wanting to use TrioAir on their computer, go to https://www.trioair.net.

If you are a new user, first sign up.

Cellphone App

User wanting to use the TrioAir app can download and install TrioAir:

• Google Play
• Apple Store

Install the app and then Sign Up.

Step 2: Sign Up

Once you have accessed or installed TrioAir, the second step is to set up your own account.

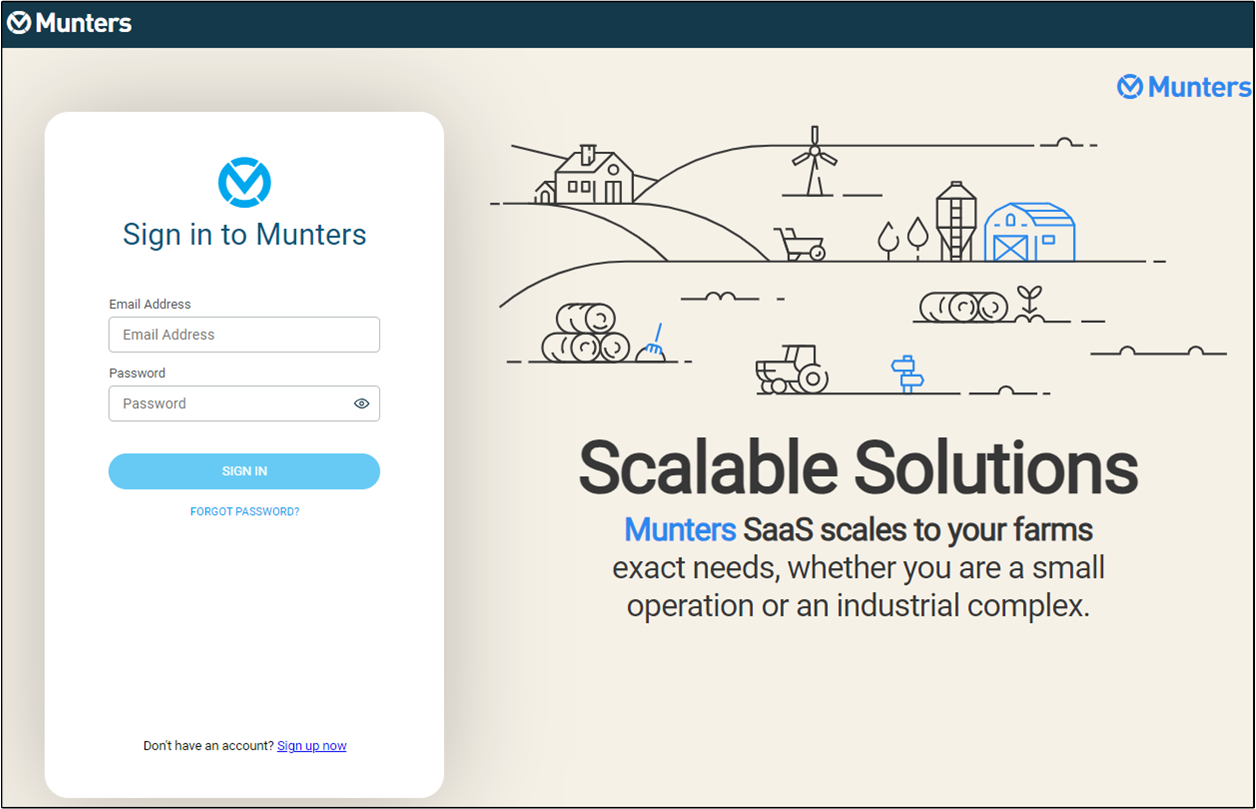

Signing up to TrioAir (and signing in) follows very standard procedures.

1. Click Sign Up Now.
2. Enter an email address.
3. Follow the online instructions.
4. The final step in creating an account is to accept the Terms and Conditions. Once these are accepted, an account is created.

For more information, click here.  Once you set up your account, you can edit the account details.

• Account Details
• Subscription to TrioAir Service Plans

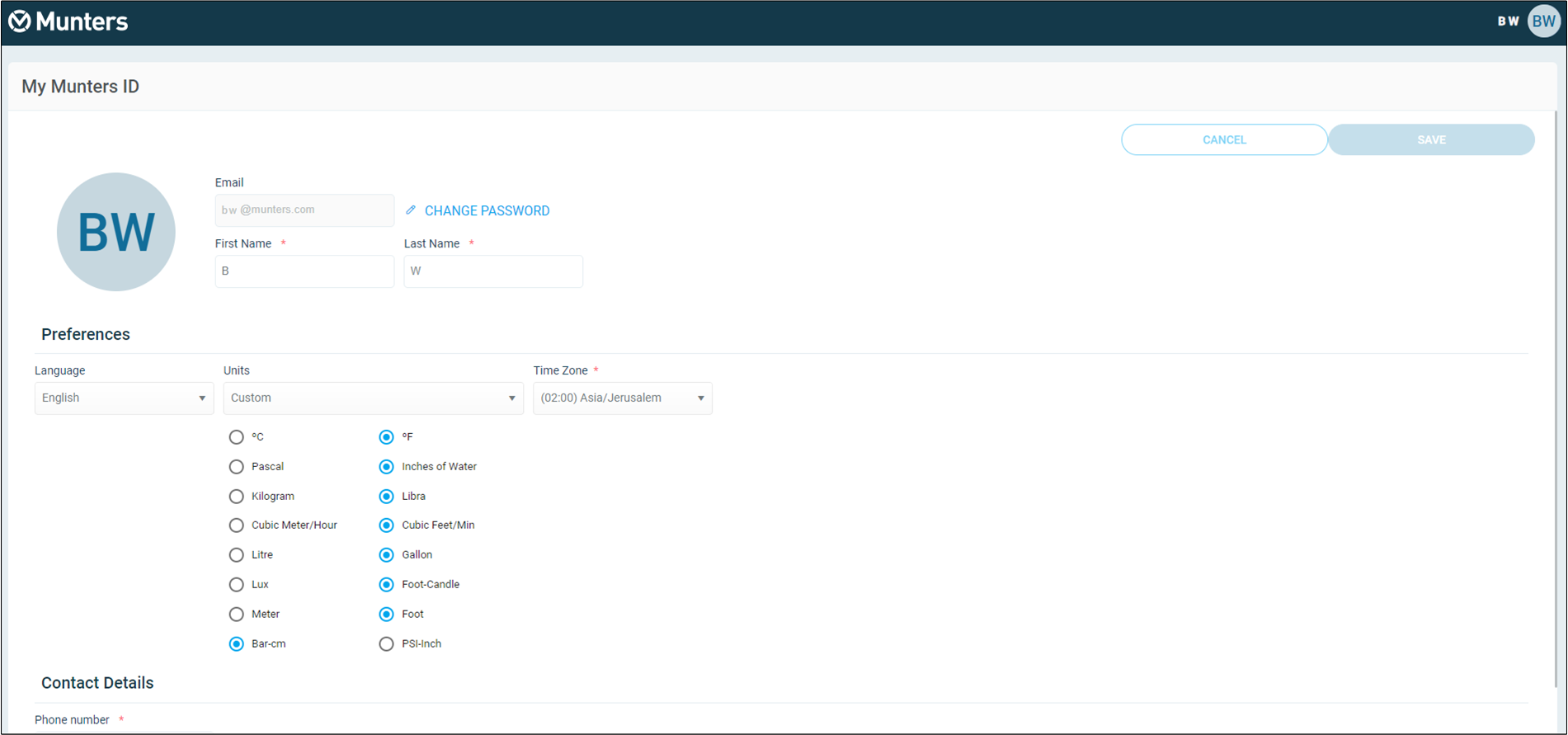

Account Details

To define your account details, click the Initials icon and go to My Munters ID. On this page you define items like:

• User name
• User interface language and units preferences
• Farm time zone

For more information, click here.

Subscription to TrioAir Service Plans

Coming soon.

Step 3: Creating and Managing a Farm

Once you have an account, the next step is to create one or more farms.  A farm contains one or more Trio controllers.  In addition, it is the focal point between the controllers and integrators. As farm owner, you can invite new users and define their access rights.

• Creating a Farm
• Managing a Farm

3a: Creating a Farm

Creating a farm consists of:

• Naming the farm
• Selecting the livestock (greenhouse, poultry, or swine)
• Picking the farm's location.

For more information, click here.

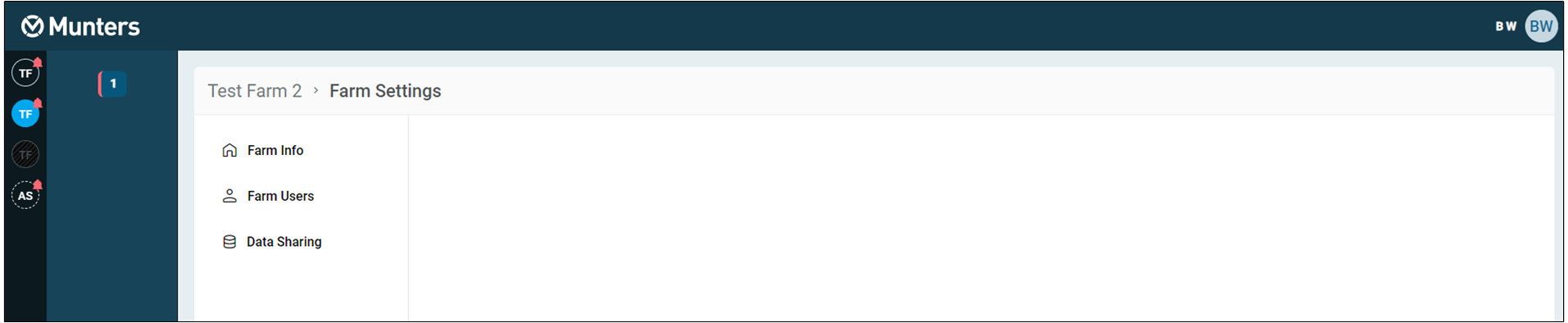

3b: Managing a Farm

Once created a farm owner can:

• Rename the farm
• Change the farm location
• Select the company/integrator
• Select the data provider
• View the controllers' tech support data
• Invite new users
• Delete a farm
• Delete a Trio controller

For more information, click here.

Step 4: Adding Controllers to Farms

The last step in setting up TrioAir is to add at least one controller to each farm.  After creating a farm, you can start adding controllers to the farm. This process is done locally, at the controller.

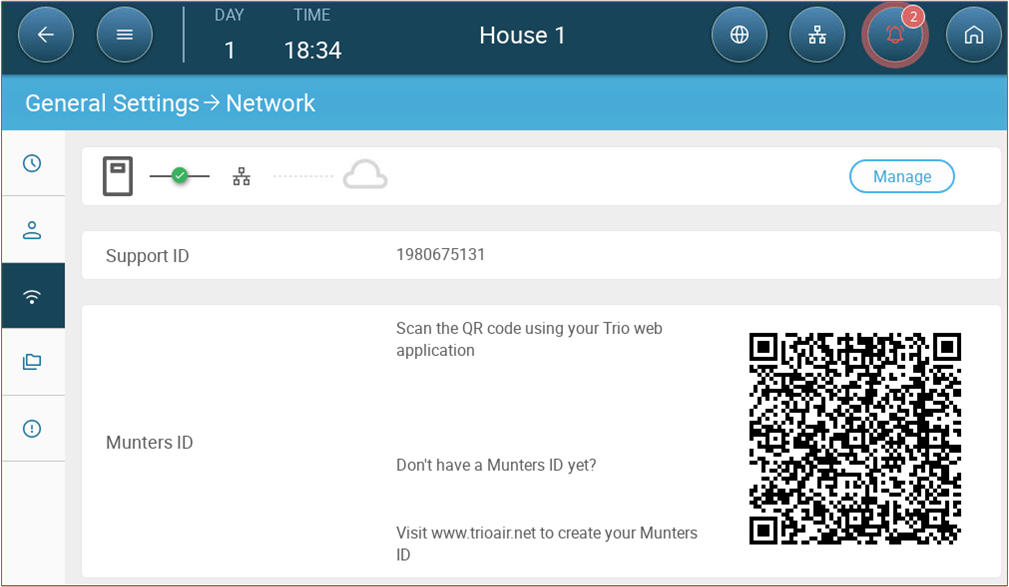

Each controller has a QR code used to pair (meaning, to register) the controller to a farm.

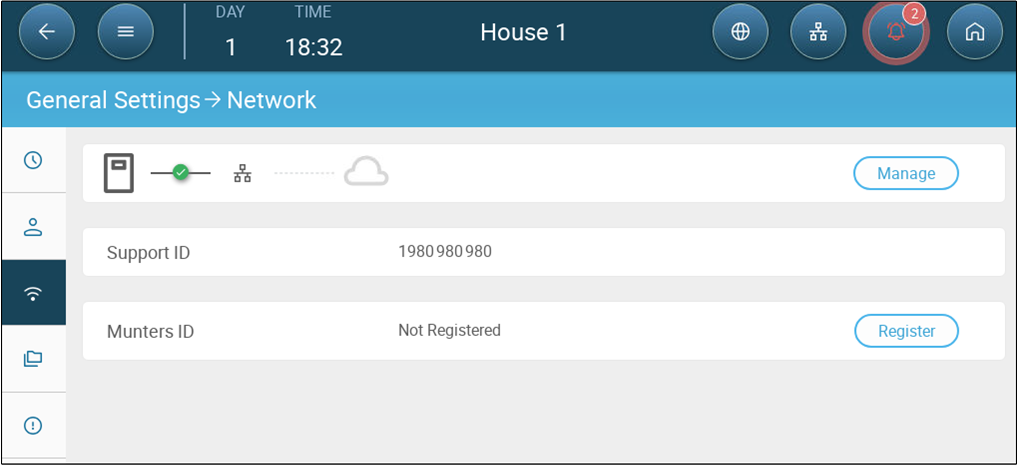

1. On the Trio screen, go to System > General Settings > Network.
2. Click the Register icon.

3. Scan the QR code.
4. Add the controller to the required farm.
5. Repeat this process for every controller.

For more details, click here.

Note: Removing a controller from the farm can be only done ONLY via the app.

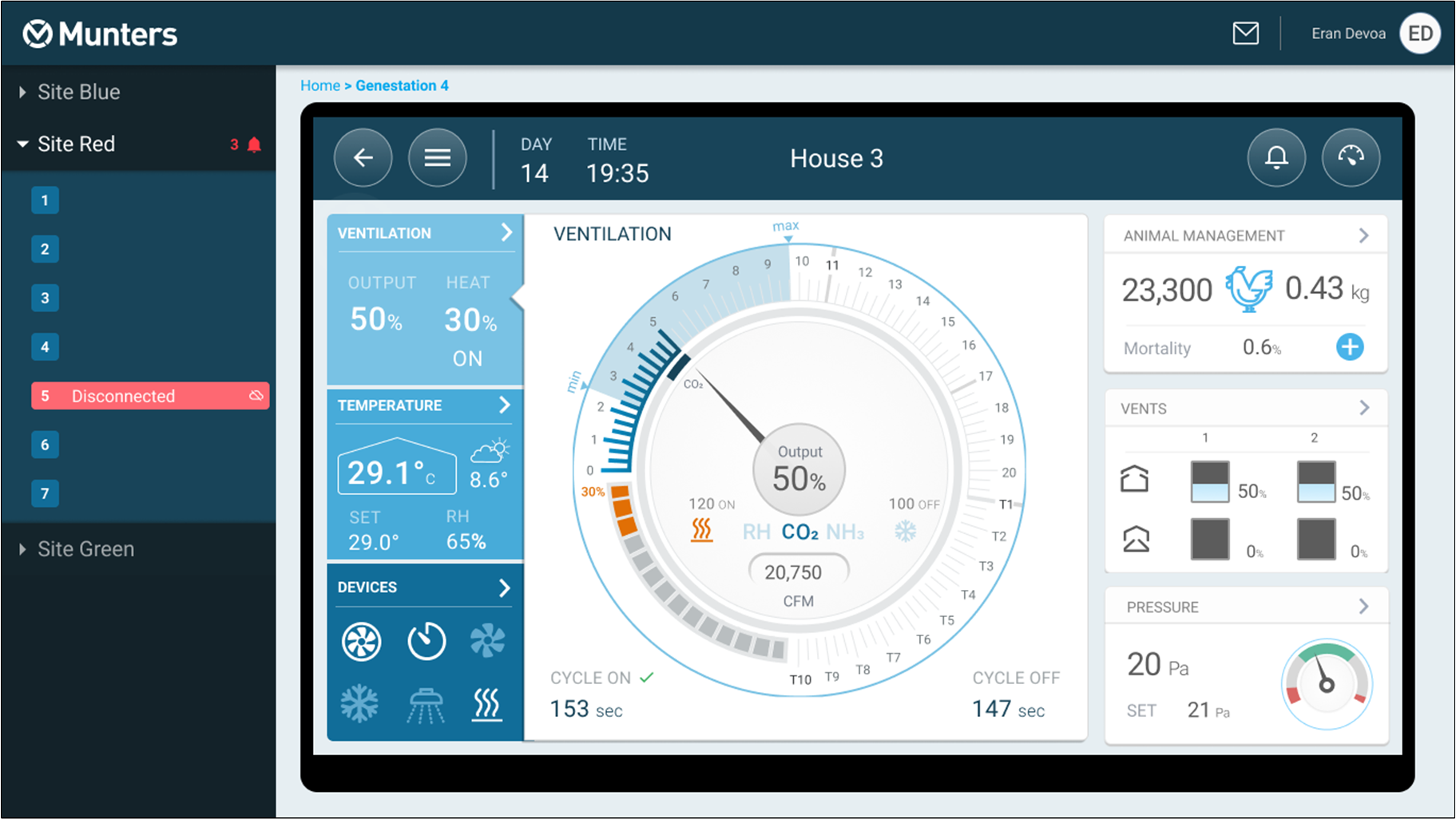

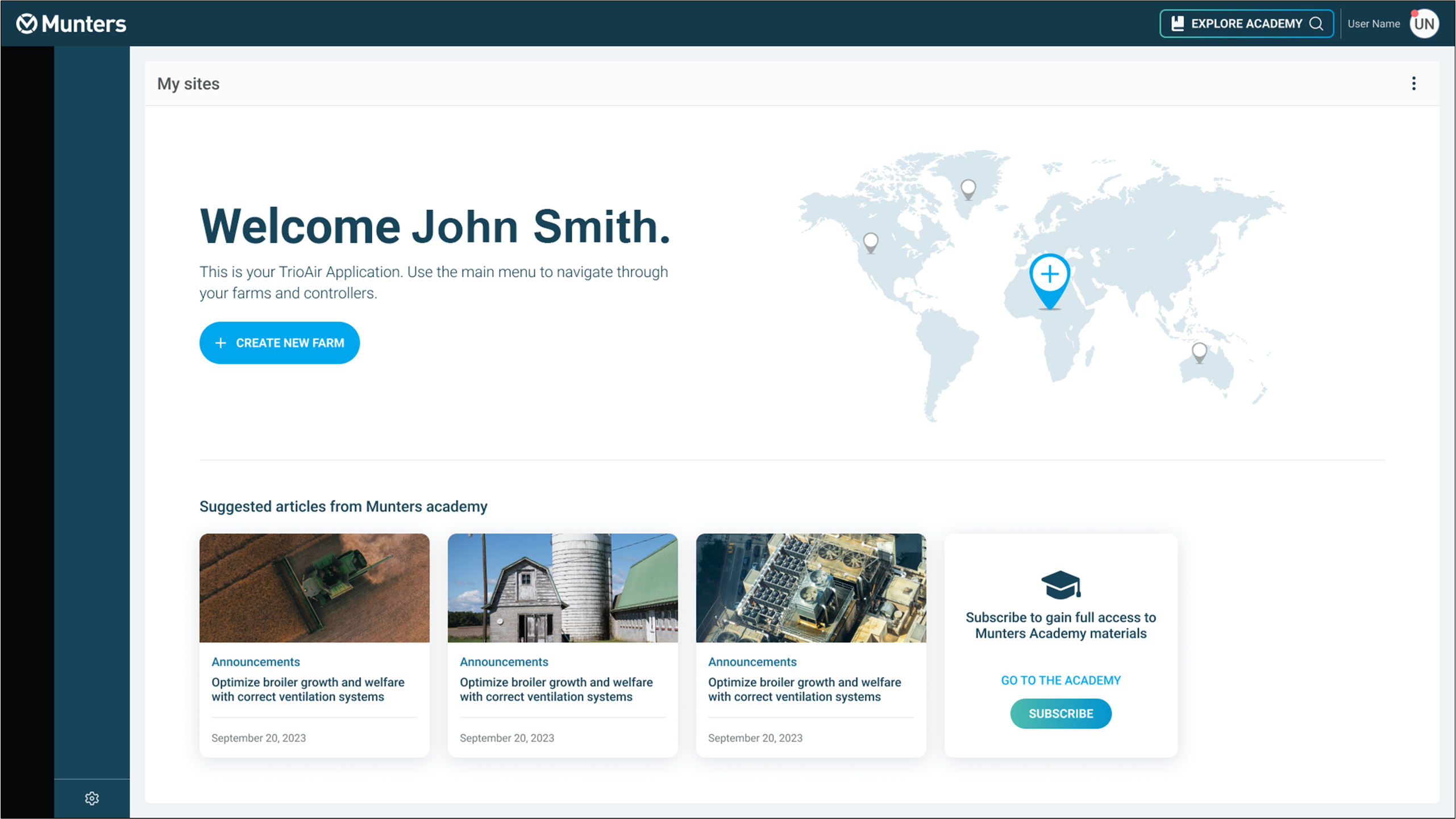

Dashboard

The Dashboard is your jump off point for viewing the farms and their controllers,  for comparing the farms' data, and accessing the alarms.

For more information, click here.

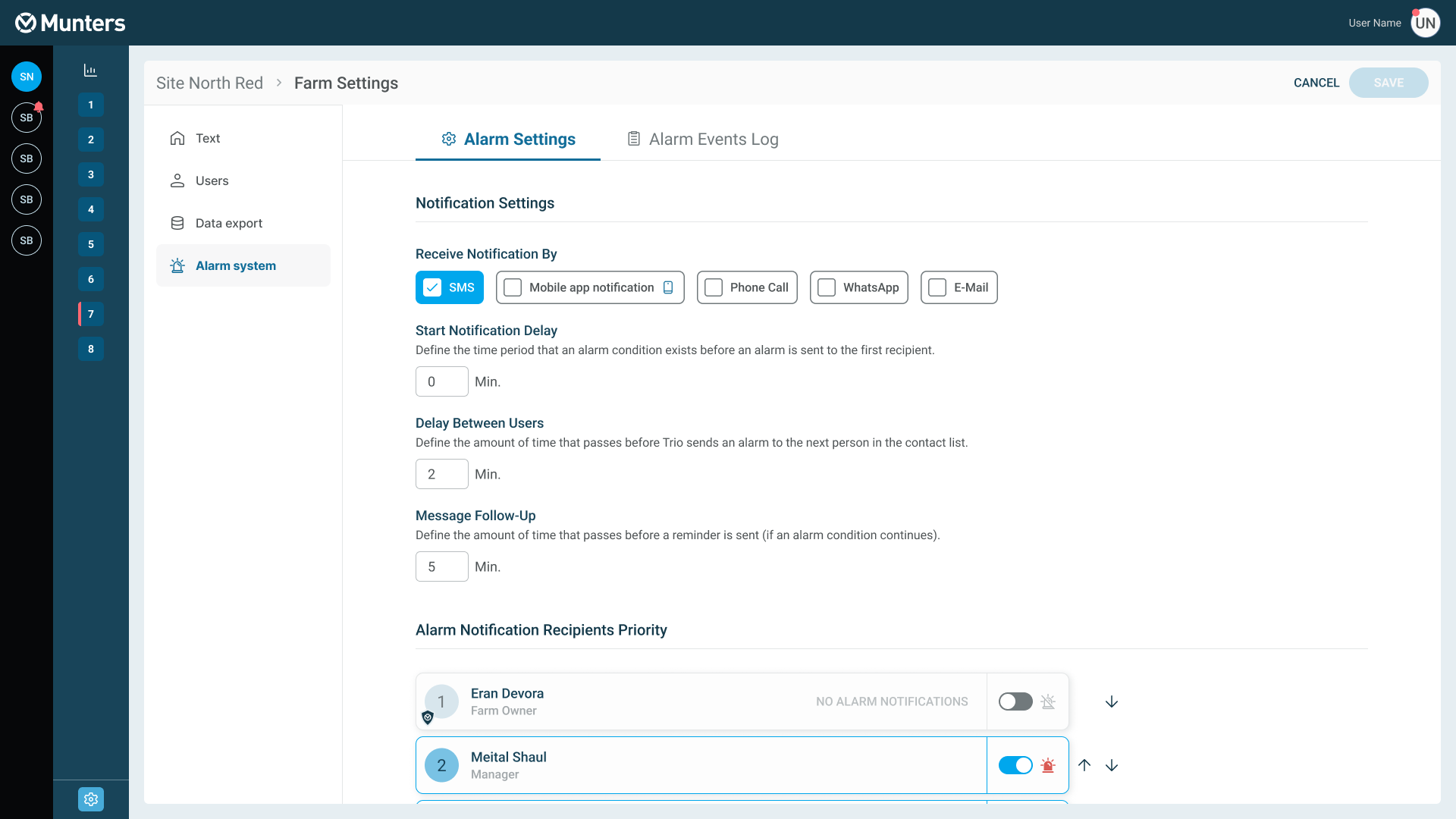

Alarms Management

TrioAir provides alarms, enabling users to be informed about critical events going on at their farms, in real-time.  These messages are sent to the cloud and then forwarded to managers and operators. While the criteria for when alarms are generated (for example, when is a heat alarm generated) is determined on the Trio itself, alarm management can be defined in TrioAir.

For detailed information on how to use the TrioAir Alarm Management tool, click here.
