CommBox SSD Card Replacement

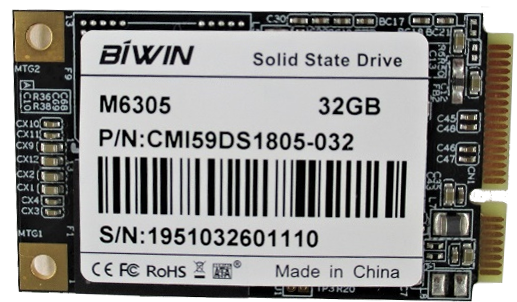

• CommBox Retrofit Kit for Green Field App: P/N 960-99-00114 (MSATA SSD 32GB COMMBOX GREENFIELD APP)

This document details how to replace the CommBox SSD card.

1. Unplug the CommBox’ power cord.

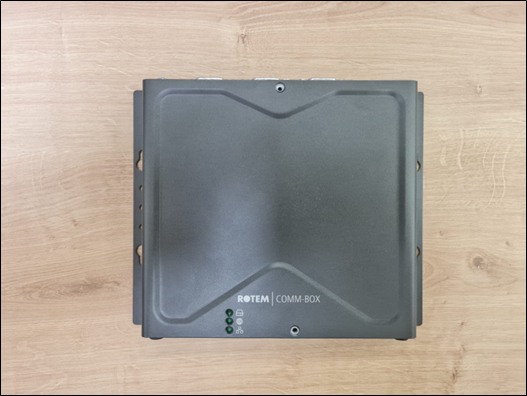

2. Open the CommBox by removing all six screws.

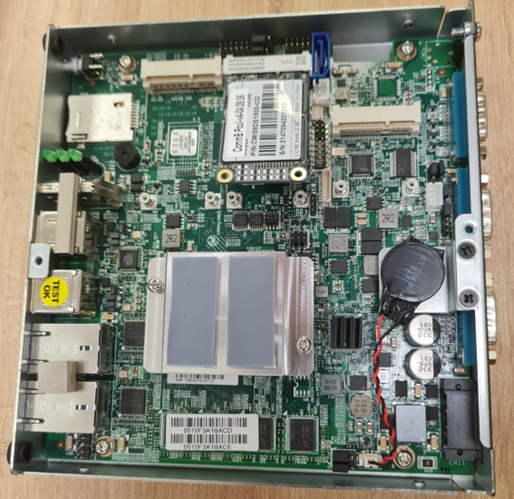

3. Remove the cover.

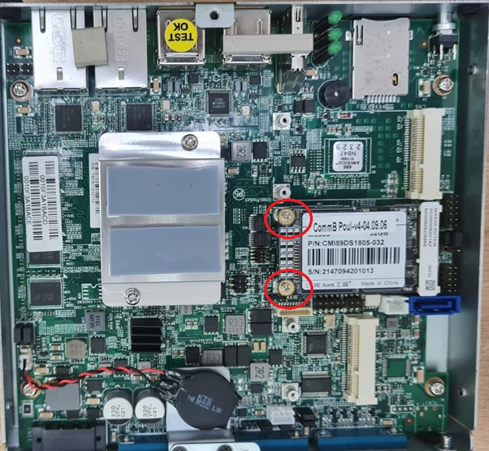

4. Unscrew the SSD screws and remove the SSD gently.

5. Insert the new SSD drive and reverse the above steps.
