Contactor Check and Terminals Example

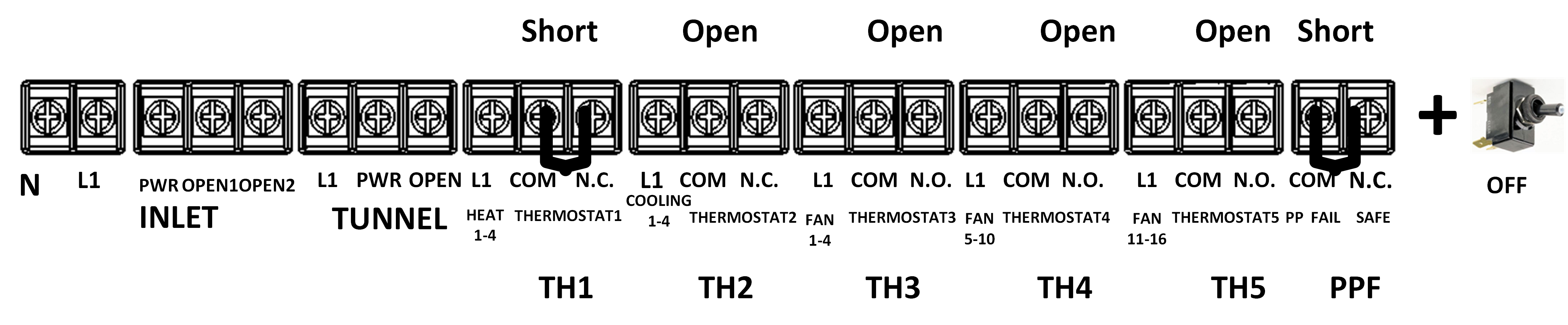

To check K4, ensure that the inputs/terminals settings are set as follows:

TH1	short
TH2	open
TH3	open
TH4	open
TH5	open
PP-F:	short
Latch:	off

Shorting the unit
