Mga Detalye ng RBU-27SE

Talahanayan 1: Mga Input/Terminal

Inlet, All Switches-Auto
TH1	TH2	TH3	TH4	TH5	PP-F	Latch
short	open	open	open	open	short	off
open	short	open	open	open	short	off
open	open	open	open	short	short	off
open	open	open	open	open	open	off
open	open	open	short	open	short	off

Talahanayan 2: Mga Contactor K1-10

K1	K2	K3	K4	K5	K6	K7	K8	K9	K10
115V	115V	115V	115V	115V	115V	115V	115V	115V
115V	115V	115V	115V	115V	115V	115V	115V	115V
115V	115V	115V	115V	115V	115V	115V	115V	115V
			115V	115V				115V	115V
			115V	115V				115V

Talahanayan 3: Mga Contactor K11-20

K11	K12	K13	K14	K15	K16	K17	K18	K19	K20
115V
	115V	115V	115V	115V	115V	115V	115V	115V	115V

Talahanayan 4: Mga Contactor K21-28

K21	K22	K23	K24	K25	K26	K27	K28
			115V	115V
					115V	115V	115V
115V	115V	115V

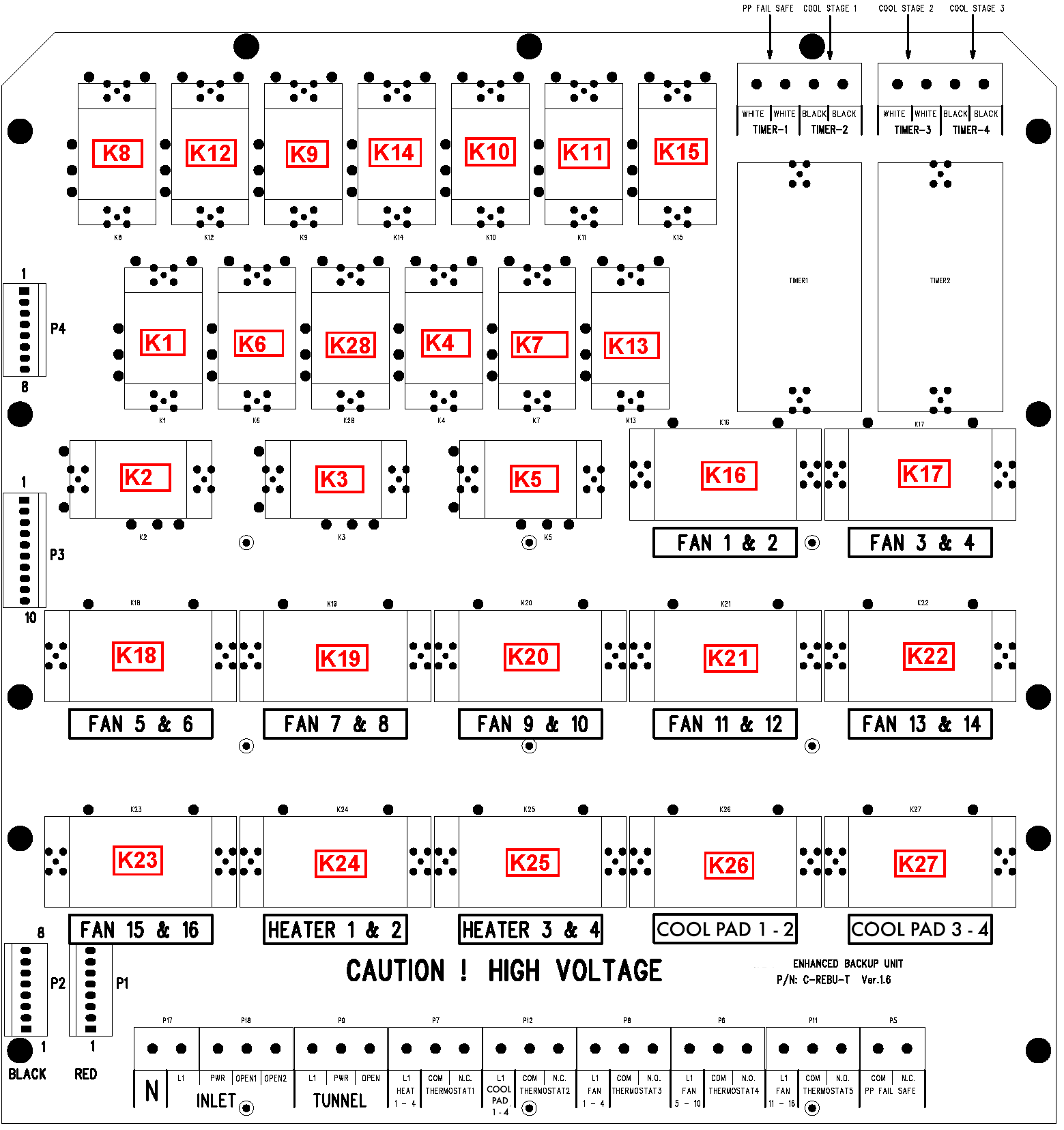

Contactor at Terminals Layout Map
