Platinum - Software Update

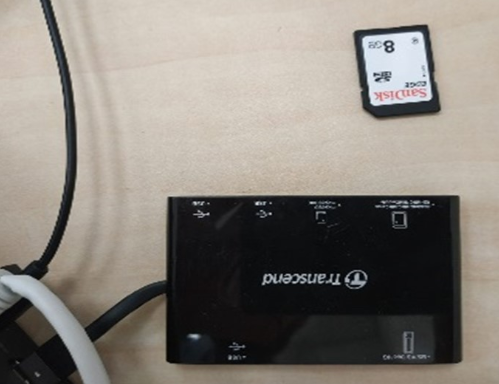

save the new SW on SD Card

SW update process:

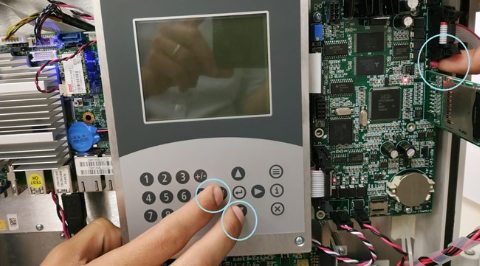

1. Press the tree buttons simultaneously
2. Release your fingers from the red button first and then release the other two fingers
3. “boot loading screen” comes up – fill in the password “1948” and press “Enter”
4. Select “Update Firmware” and press “Enter”
5. Select the proper firmware from the list and press “Enter”
6. Confirm your choice > click Yes
7. New firmware is being uploaded – the process takes a couple of minutes - Don’t touch the controller while the process is running
8. After the process is finished press “Enter” to cold start

Settings:

• Choose controller type: Broiler, Layers, etc.
• Choose a standard of precision
• The software version is updated
