Preliminary Information

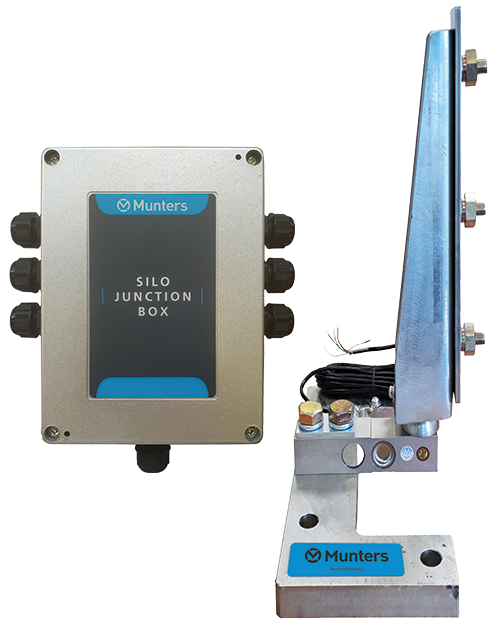

| MSLC-10 SiloSenz Load Cell | RJB-6 Junction Box | Installation accessories | ||
| Sensor Base | Sensor Stem | |||
| A | B | C | D | |
| MPN | Munters Part Number | |||
| DPN | Distributor Part Number | |||
MSLC-10 Spare Parts

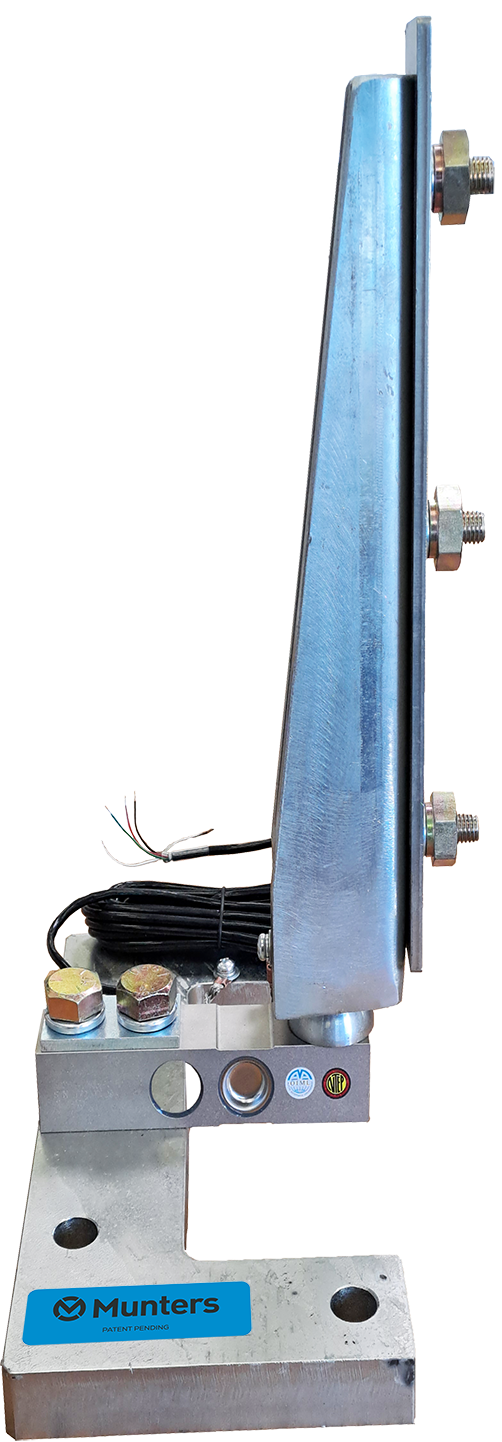

Sensor Base Spare Parts
| ID No. | Description | Order Catalog Number |
| A1 | LCELL SENSOR 563YH-10Klb-RT01 for MSLC-10 (SP-330226) |
MPN: 911-99-00025 |
| DPN: | ||
| A2 | SPARE CNC (SILO BOX C 3421) (SP-RSLC-200056) | MPN: 999-99-00227 |
| DPN: | ||
| A3 | CABLE GROUND TIN PLATED COOPER STRIP 20CM STRIP-7.9 (SP-145002) | MPN: 911-99-00013 |
| DPN: |

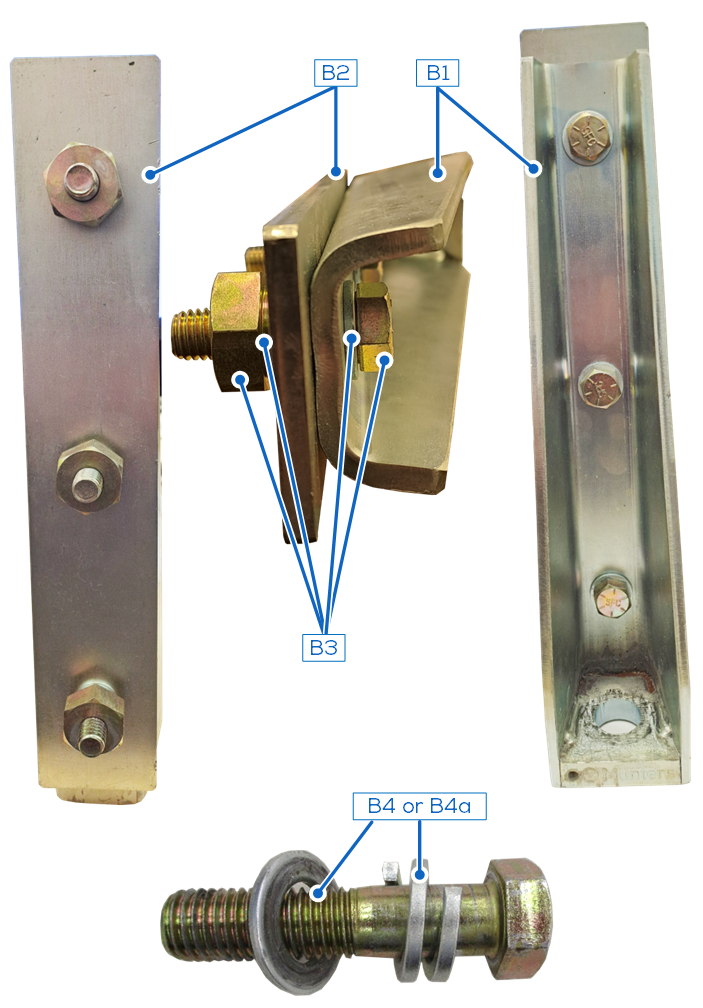

Sensor Stem Spare Parts
| ID No. | Description | Order Catalog Number | Remarks |
| B1 | SILO LC 10KLB LEG ADAPTER (SP-122535) |
MPN: 911-99-00026 | |
| DPN: | |||
| B2 | SILO LC 10KLB REAR PLATE (SP-122528) |
MPN: 911-99-00027 | |
| DPN: | |||
| B3 | KIT of PARTS TO ATTACHING THE LEG ADAPTER (1 POINT) | MPN: 911-99-00028 | |
| DPN: | |||
| B4 | KIT of PARTS TO ATTACHING THE SILO LEG to LCELL SENSOR | MPN: 911-99-00029 | OR |
| DPN: | |||
| B4a | SPRING WASHERS DOUBLE COIL M-20 (SP-320078) | MPN: 999-99-00511 | |
| DPN: |
RJB-6 Spare Parts

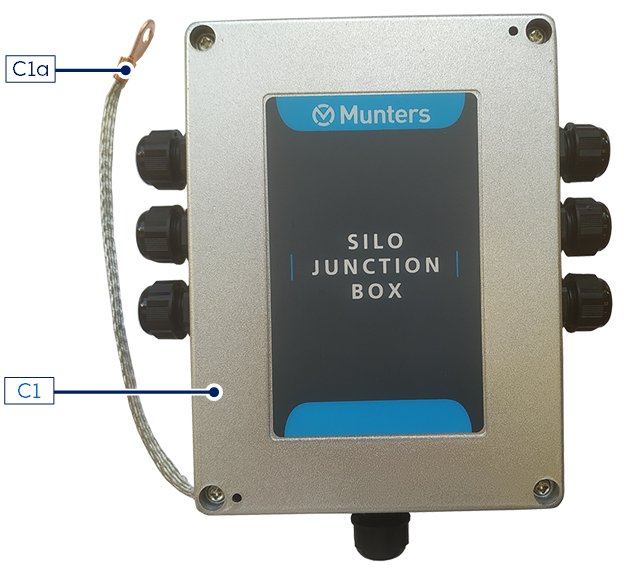

Junction Box Spare Parts
| ID No. | Description | Order Catalog Number |
| C1 | J06EA-II-20 NEW DESIGNED 6 INPUTS ALUMINIUM CASTING JUNCTION BOX )SP: M2-RJB-VB) | MPN: 911-99-00030 |
| DPN: | ||
| C1a | CABLE GROUND TIN PLATED COOPER STRIP 20CM STRIP-7.9 (SP-145002) |
MPN: 911-99-00013 |
| DPN: |

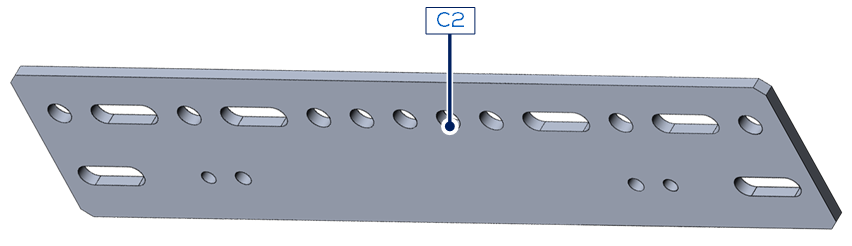

Mount Bracket Spare Parts
| ID No. | Description | Order Catalog Number |
| C2 | ADA BRACKET FOR SILO JB )SP-122537) | MPN: 911-99-00031 |
| DPN: |
Ground Cable Spare Parts
| ID No. | Description | Order Catalog Number |

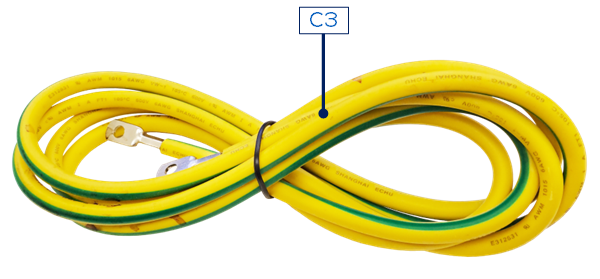

| C3 | CABLE GROUND Y/G UL1569 6AWG 2.5M R_R (SP-143026) |
MPN: 999-99-00391 |
| DPN: |

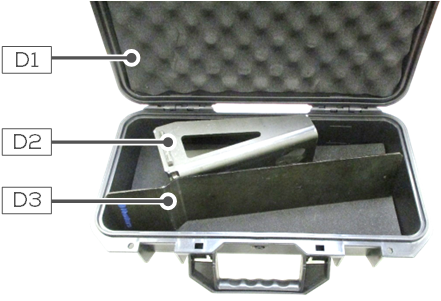

Installation Accessories Spare Parts
| ID No. | Description | Order Catalog Number |
| D1 | TOOL CASE 392x182x100 BLACK )SP-123270) | MPN: 911-99-00032 |
| DPN: | ||
| D2 | SILO LC 10KLB JACK ADAPTER (SP-122530) | MPN: 911-99-00033 |
| DPN: | ||
| D3 | SILO LC 10KLB MARKING PLATE (SP-122531) | MPN: 911-99-00034 |
| DPN: |
