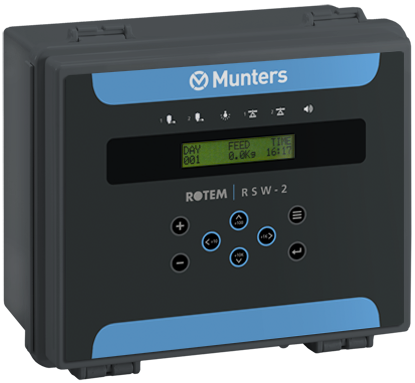

RSW-2 Spare Parts

• Preliminary Information
• RSW-2 Spare Parts
• Cards and Cables

Preliminary Information

Table Key

	RSW-2
Door Cards	A
Main Container Cards	B
Cables and Harnesses	C
MPN	Munters Part Number

RSW-2 Spare Parts

• Door Card Spare Parts
• Main Container Card Spare Parts

Door Card Spare Parts

ID No.	Description	Order Catalog Number	Remarks

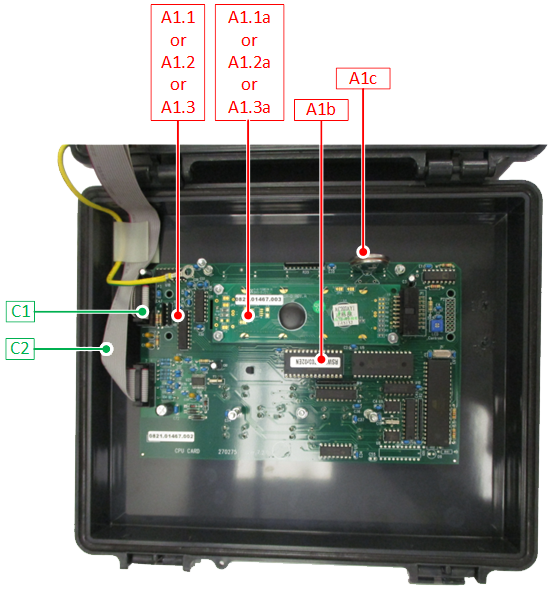

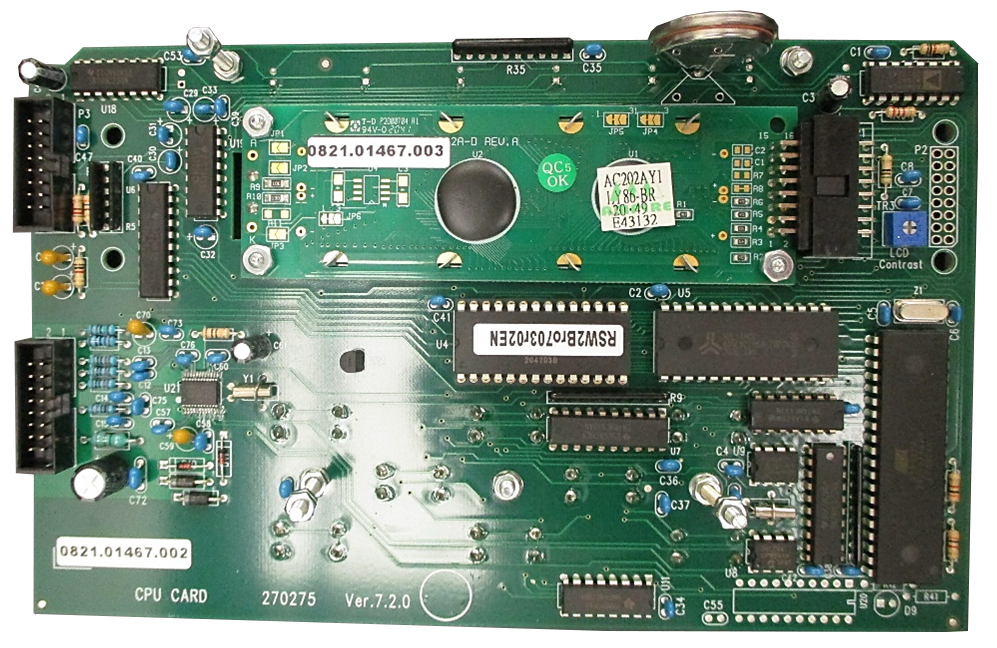

A1.1.1	RSW2 -POU- CPU CARD (RSW2-L)	MPN: 911-99-00004	OR
		DPN:
A1.1.2	RSW2 -POU- CPU CARD (RSW2-L&C)	MPN: 911-99-00020	OR
		DPN:
A1.2.1	RSW2 -POU- CPU CARD WITH CHINESE LCD (RSW-2-CN-L)	MPN: 911-99-00003	OR
		DPN:
A1.2.2	RSW2 -POU- CPU CARD WITH CHINESE LCD (RSW-2-CN-L&C)	MPN: 911-99-00021	OR
		DPN:
A1.3	RSW2 -POU- CPU CARD WITH RUSSIAN LCD (RSW2-RU-L)	MPN: 911-99-00007
		DPN:
A1.1.1\2a	RFS6/RSW2 NEW LCD - 90 DEGREES HEADER (SP-R-FSRSW-LCDNW)	MPN: 912-99-10014	OR
		DPN:
A1.2.1\2a	RSW2 CHINESE LCD (SP-RSW2-CN-LCD)	MPN: 999-99-00021	OR
		DPN:
A1.3a	RSW2 -POU- RUSSIAN LCD (SP-250034)	MPN: 911-99-00008
		DPN:
A1b	EPROM (A-EPROM) – programmed according to the customer's instructions	MPN: 999-99-00008	U4
		DPN:
A1c	BAT 3V FOR PCB WITH 3 PINS HOLDER (SP-450002)	MPN: 999-99-00121	BAT-1
		DPN:

ID No.	Description	Order Catalog Number
C1	RSW / RFS FLAT CABLE 16P 36cm (SP-141036)	MPN: 912-99-10015
		DPN:
C2	RSW/RFS FLAT CABLE 16P 47cm (SP-141037)	MPN: 912-99-10016
		DPN:

Main Container Card Spare Parts

ID No.	Description	Order Catalog Number	Remarks

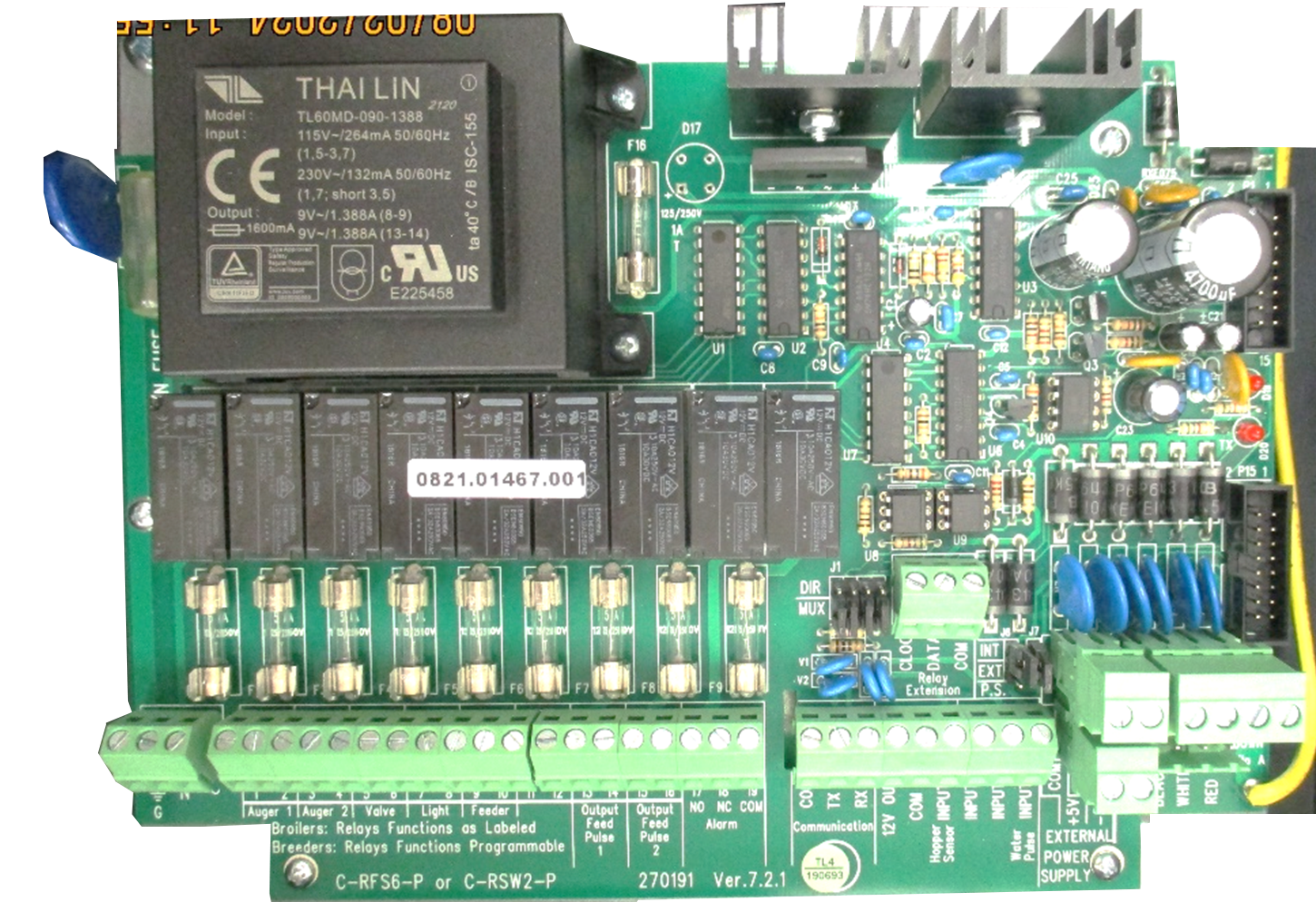

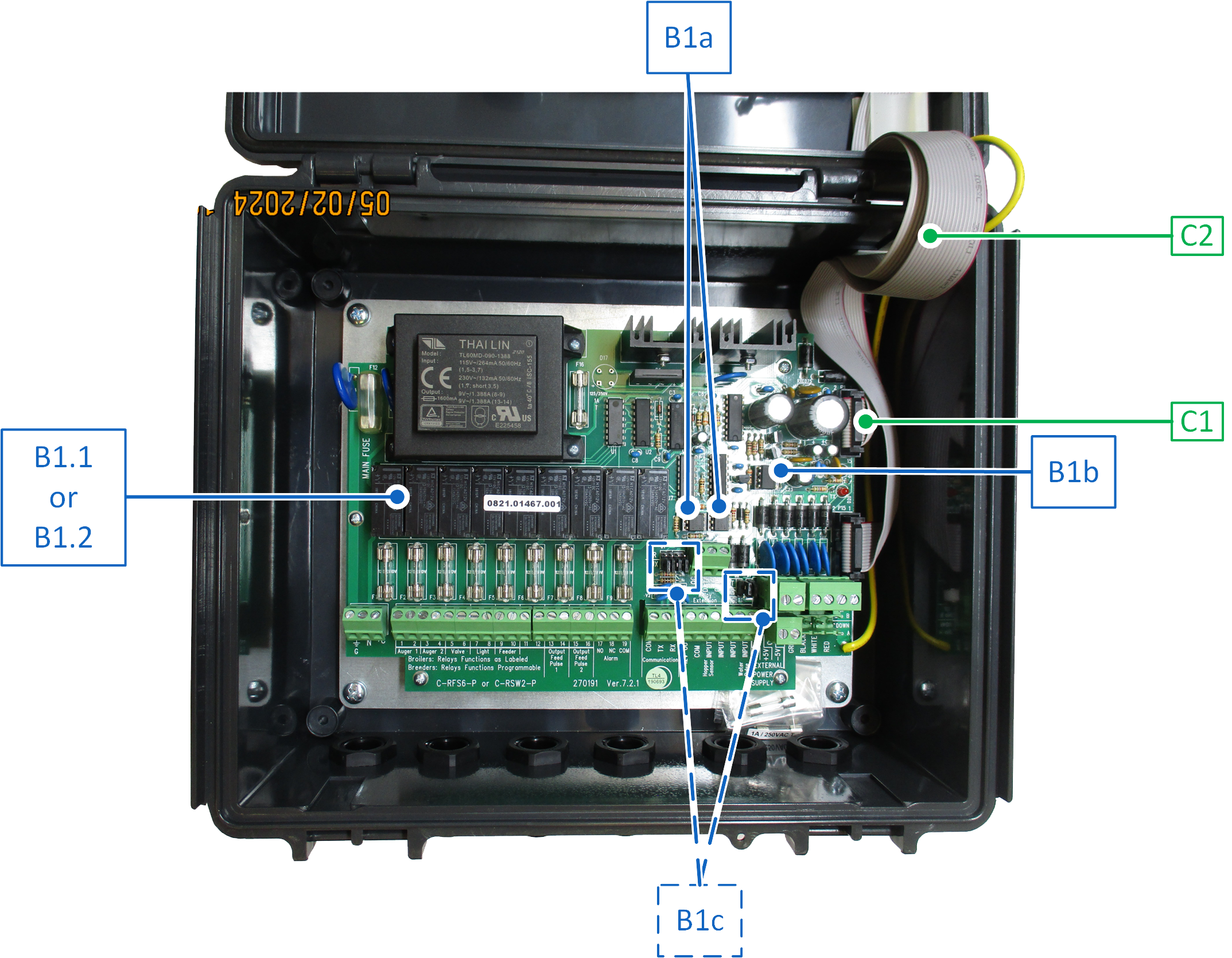

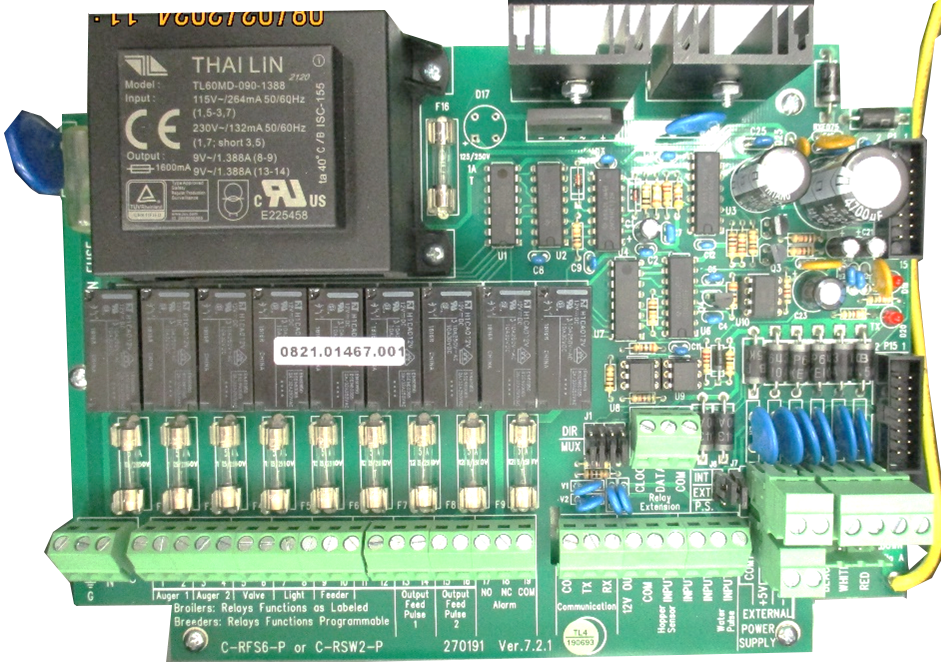

B1.1.1	RSW2 -POU- POWER CARD 230Volt (RSW2-P-V2)	MPN: 911-99-00005	OR
		DPN:
B1.1.2	RSW2 -POU- POWER CARD 230Volt (RSW2-P-V2) &c	MPN: 911-99-00022	OR
		DPN:
B1.2.1	RSW2 -POU- POWER CARD 115Volt (RSW2-P-V1)	MPN: 911-99-00016	OR
		DPN:
B1.2.2	RSW2 -POU- POWER CARD 115Volt (RSW2-P-V1) & c	MPN: 911-99-00023
		DPN:
B1a	CHIP CNY17-4 6LEGS (SP-CNY17-4)	MPN: 999-99-00131	U8,U9
		DPN:
B1b	IC ILD5 DIP8 (SP-220142)	MPN: 999-99-00091	U10
		DPN:
B1c	PLUG JUMPER (SP-150034)	MPN: 999-99-00222	(J1)
		DPN:

Cards and Cables

• Door Cards
• Main Container Cards

Door Cards

Card	Description	Munters Ordering Number
	R-RSW2-L: RSW-2 CPU CARD R-RSW2-CN-L: RSW-2 CPU CARD CHINESE LCD R-RSW2-RU-L: RSW-2 CPU CARD RUS LCD	911-99-00004 911-99-00003 911-99-00007
	R-RSW2-L&C: RSW-2 CPU CARD&COATING R-RSW2-CN-L&C: RSW-2 CPU CARD CHINESE LCD&COATING	911-99-00020 911-99-00021

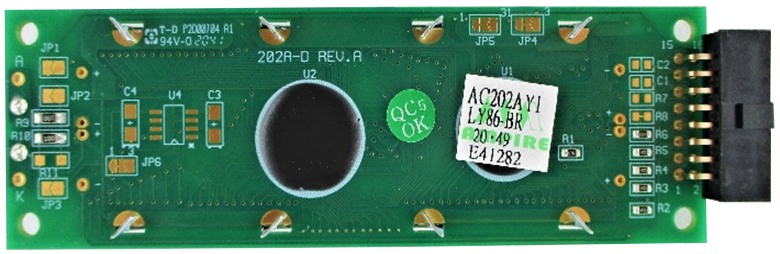

	250007: LCD 20*2 AC202AYILY86-B(R) HEB/ENG Ampire	912-99-10014

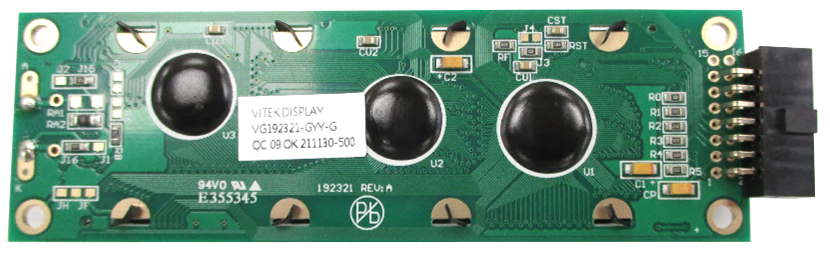

	250049: LCD VG192321-GYY-G Vitek	999-99-00021

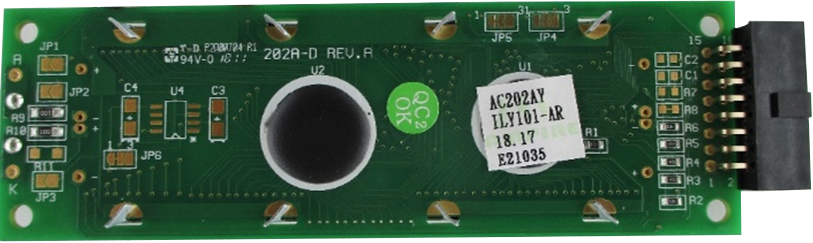

	250034: LCD 20*2 AC202AYILY101 RUS/ENG Ampire AC-202AYILY-101-A	911-99-00008

Main Container Cards

Card	Description	Munters Ordering Number
	R-RSW2-P-V2: RSW-2 POWER CARD 230Volt R-RSW2-P-V1: RSW-2 POWER CARD 115Volt	911-99-00005 911-99-00016
	R-RSW2-P-V2&C: RSW-2 POWER CARD 230Volt&COATING R-RSW2-P-V1&C: RSW-2 POWER CARD 115Volt&COATING	911-99-00022 911-99-00023
