Placing the Rotem One Communication Cable

P/N: 143090 (EXCON 300106HM003 AUK PH02H44 44 CM BLACK 1X22 AWG)

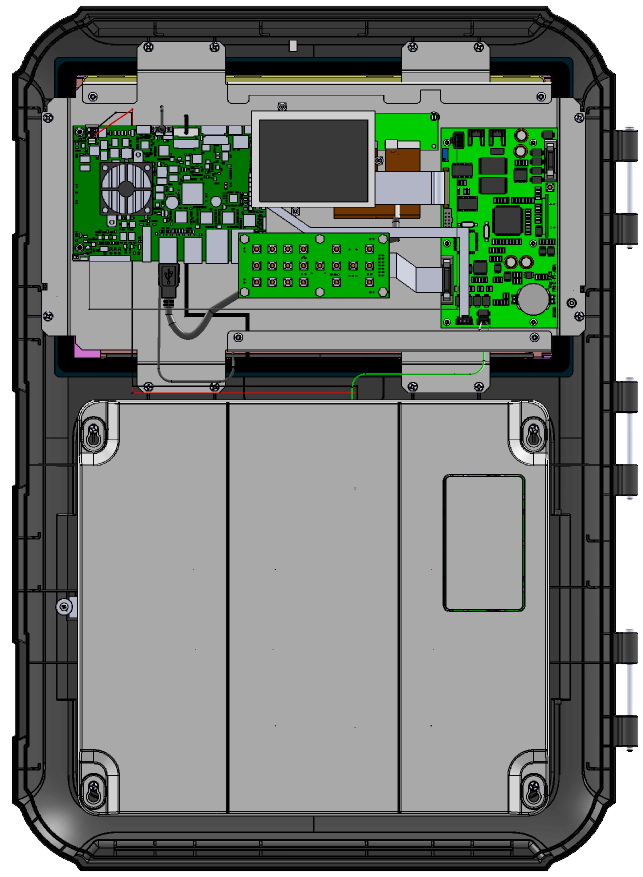

1. Remove the cover.

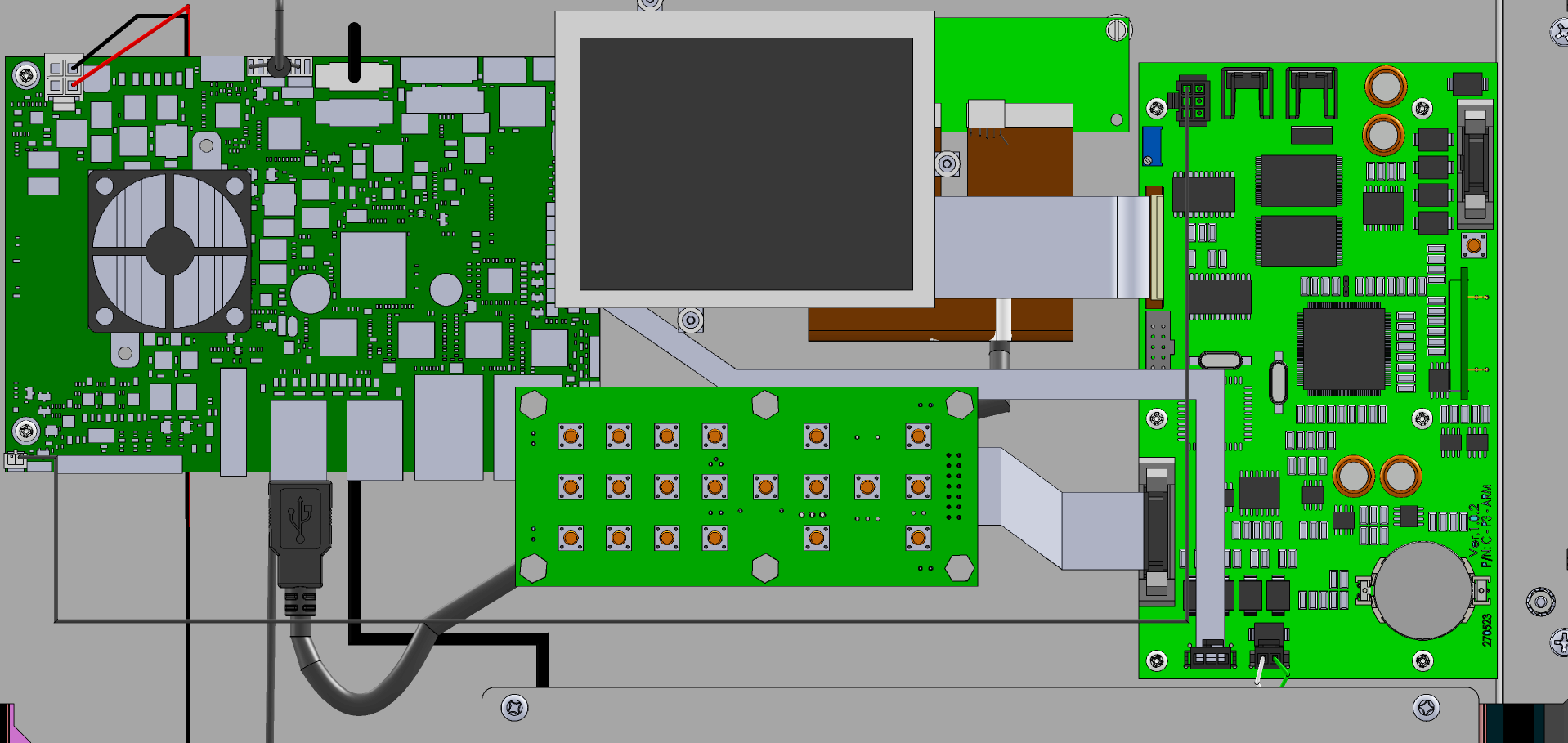

2. Place the cable on connectors A and B.

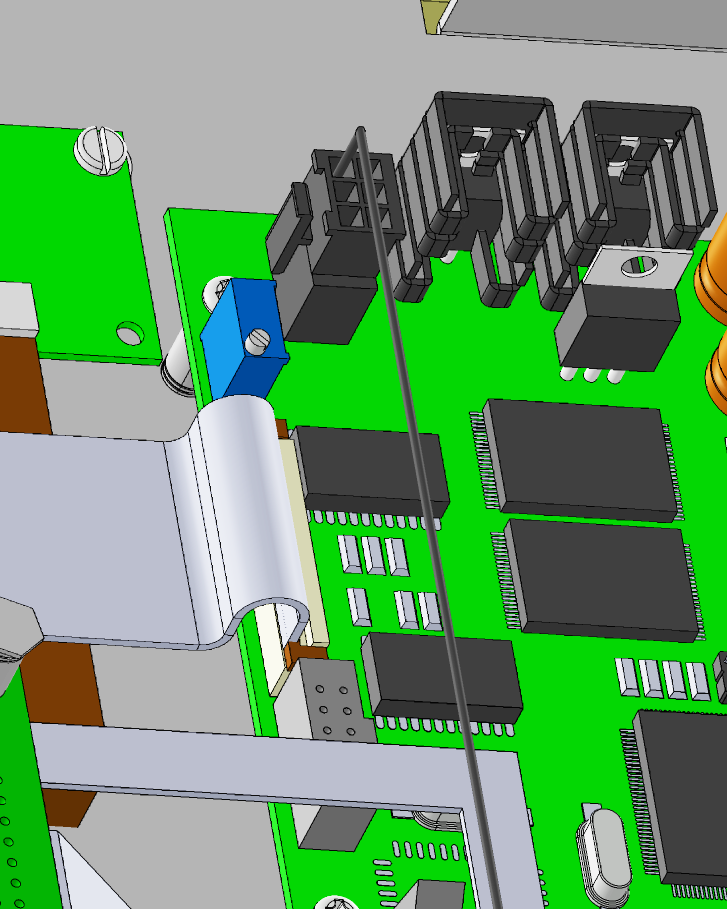

3. When placing the cable in A, ensure that:

• The connector is on the back two pins.
• The cable is placed on the inner pin.

A	B
