Generating an Activity Log

The following section details how to use the Activity Log, in particular how to determine who made changes to the controllers’ settings. Please note:

• These inquiries can only be made via the web.  Local connections or connecting via TeamViewer do not support this function.
• Only changes made via the web are listed! Changes made locally by the farm owner or administrator are not listed.
• Only administrators can perform this function.

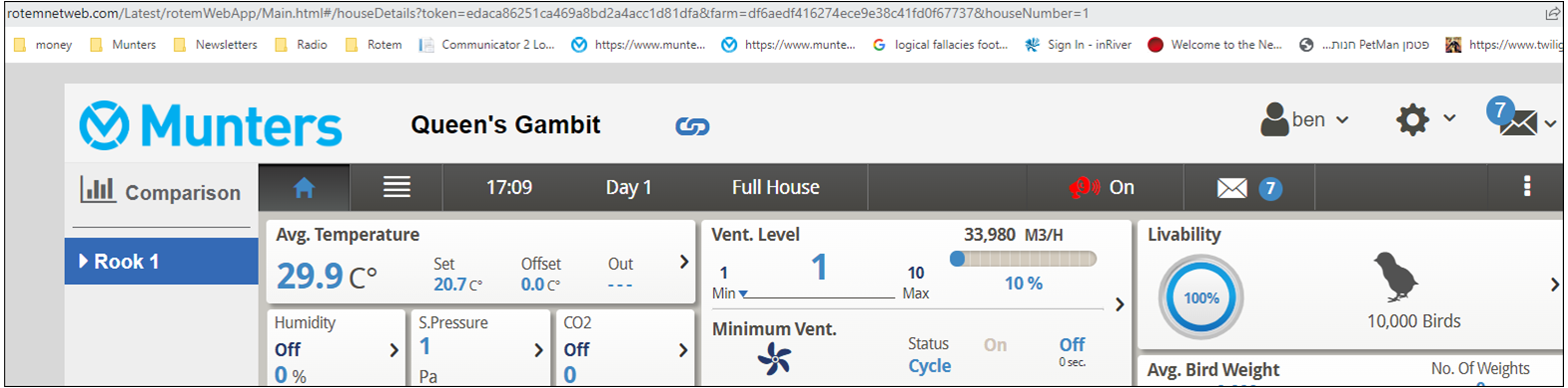

1. Connect to a farm via www.rotemnetweb.com.

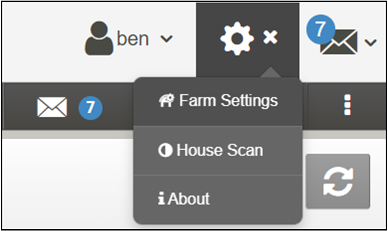

2. Under the settings icon, click Farm Settings.

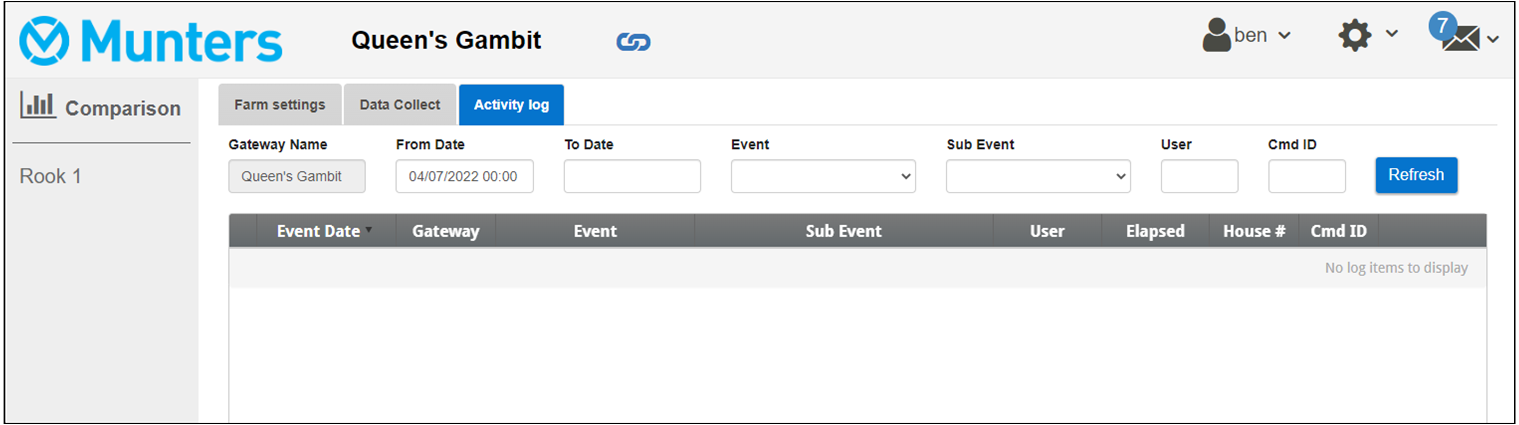

3. Click the Activity Log tab.

4. Define as needed:

• Gateway Name (farm name that the user chose): Read only.
• From/To: Define the time frame.
• Event:
  • To see all events, leave this field empty.
  • To see who made changes to the controller settings, chose Save Farm Data from the dropdown list.
• Sub Event: Select if required.
• User: If you are looking for a specific person’s activities, type in the user name.
• Cmd ID: If you are looking for a specific change in controller settings, type in the command ID. See the list in the following table.

In the following example Event is defined as Save Farm Data. User ben made the following changes:

• 85: History feed
• 66: Fan air capacity
• 21: Event DB Property
• 27: Temp & Timer Setting
• 11: VOID (Reserved)

CMD ID and Description
1: Version Old	3: VOID	4: Signature
7: Active Alarm	9: VOID	11: VOID
12: Bird Inventory - READ	13: VOID	14: VOID
15: VOID	17: CO2 Treatment STD	18: VOID
19: Dosing Pump	20: PCI	21: Event DB Property
23: VOID	24: Ammonia Treatment STD	25: Relay Current
27: Temp & Timer Setting	28: STD	29: VOID
30: Stir Fan Level	31: VOID	32: VOID
33: VOID	34: VOID	35: VOID
36: VOID	37: VOID	38: Light Feed
39: Water and Feed	40: Extra System	41: Static Pressure Standard
42: Static Pressure Precision	43: Control Mode	44: Bird Curve
45: History Setup	46: Levels Of Ventilation	47: Feed Calibration
48: Water Calibration	49: Setup	50: Relays Layout
51: Analog Sensors	52: Digital Sensors	53: Temp Definition
54: Curtains Setup	55: Vent And Curtain Level	56: Sys CO2 Treatment STD
57: System Parametes	58: Bird Scale Setting Bre As Bro	59: Alarm Settings
60: Sys Ammonia Treatment STD 9	61: Stir Fan Program	62: VOID
63: VOID	64: Analog Output	65: Temperature Reminder
66: Fan Air Capacity	67: VOID	68: Speed Fan Levels
69: Feed Bin Settings	70: Data Plug	72: Relays Test
73: VOID	74: Daily DB Property	75: Cage
76: EggRoomSetPoint	77: VOID	78: VOID
81: Sys Nest	83: History Temperature	84: History Humidity
85: History Feed	87: History Alarams	88: SSC Plug Play
90: Sys_ControlMode	92: Week Of Flock	93: Time
94: VOID	96: SRP HUB HW	97: Feed Inventory
98: Last 100 Weights	99: Set THI	101: Temp Curve
102: Set Rad Heater	103: Vent Level Set Point	104: Set stir fan
105: Static Pressure Set Point	106: Set Cool Pad	107: Set Point Foggers
108: Set  Humidity Treatment	109: Set Soft Min/Max Level	110: VentAndCurtainLevels Set Point
111: Light Set parameters	112: Active Silo	113: Emergency Set Point
114: VOID	115: Sys Minimum Vent	116: Set Relay Current
117: Bird Inventory - WRITE	118: VOID	119: Alarm DB Property
120: RDT Table	122: Test Analog Input	123: Test Digital
124: VOID	125: RDT Set Table	126: SSC HD
127: Het Key - Temperature Sensors	128: FeedQuantityUpdate	130: VOID
131: VOID	132: VOID	133: VOID
134: CO2 Set Point	135: Sys Water and Feed	137: VOID
138: VOID	139: VOID	140: VOID
141: History System Events	142: Set Bird Scale Setting BreAsBro	143: WorkRoomControl
144: EggRoom	145: VOID	146: CO2 Treatment
147: Feed Conversion	148: SRP Hub Plug And Play	149: Light No Feed
150: History View DB Property	151: New History View	152: Set Dosing Pump
153: Levels Of Ventilation - Read Only	154: Min/Max Level By Weight	155: Set Point of Min/Max Level By Weight
156: Set Point Scale Laout	157: MinVent & Ramping Set point	158: Fogger Set Point (STD)
159: Fogger STD	160: Variable Speed Fans Setting	162: STD Curtain Set up
163: set.Std_V_Speed_Fans	164: Stir Fan Set program	165: Water On Demand
166: Sys variable heat	194: Feed Scale Program	206: Light No Feed
207: Light Feed	208: Water And Feed	215: Auger Layout
216: Water And Feed By Quantity from 5.05	217: Water And Feed By Quantity	218: Set Curve
222: Set Natural Program	224: Natural Program	225: Ammonia Treatment
228: Service Wind Direction	231:  Ammonia Treatment SetPoint	235: Feed Line Calibration
236: Set Floor Heat	237: Light Dimmer Comm	238: Water and Feed SetPoint
239: Set Water On Demand	243: Minimum Vent Timer STD	244: Timer Settings STD
247: Temp And Timer Settings STD	248: Sys Humidity TreatmentSTD	249: Sys Curtain Calibration
255: Hot Key Natural	256: Hot Key - Lights	257: Munters Drive
258: Water Meters	260: Web OverView	261: Dash Board
262: Switches Change Confirm	263: Switche Status Array	264: Status Bar
265: Temp Reminder	266: System Security	267: Signatures
270: ReciveOnce	271: EggRoomHistory	272: HK EggRoom
273: HumidityFactorComm	274: WaterAndFeedBreeder	276: History Egg Belt
277: Fast Main Screen	278: Hot Key - Water & Feed	279: History Egg Counter
280: HK Egg Counter	284: History Ammonia	285: Hot Key - Analog Output
286: SetPoint Feed Scale	287: HK Feed Scale	288: Scale Clibration
290: Scale Layout	291: Emergency Set Comm	293: Hot Key - Scales
294: Set Analog Output	295: Feed Scale Program	296: Hot Key Feed Bin
298: Feed Scale Setting	299: HK_FeedScale	300: Hot Key - Temperature & Humidity
301: Hot Key - Curve	302: Water and Feed Set Mem23	303: Hotkey Zoon Inlet
304: Hot Key -  Infra Red	305: VOID	306: Nest table
307: Hot Key - Curtains	308: Bird Weight Bre As Bro	309: Scale History Bre
311: Bird Weight Bre Auto	312: Web Weight	313: Control Level By Weight Hot Key
314: Scale Test	315: FDQ Tab 1	318: HK Pump Dosing
319: TableWarning	320: Heather Duration	321: Power Consumption
322: History Heaters	323: History Mortality	324: History Water
325: SSC Power Consumption	326: SSC HK	327: FDQ Tab 2
328: History Variable Heaters	329: Hot Key Cool Ramping	330: Dosing Pump
331: Dosing Pump History	332: History Table Of Events	333: History Radiant Heaters
334: Power Meter HK	335: Munters Drive HK	336: Scale History
337: CO2 History	338: SRP Hub
